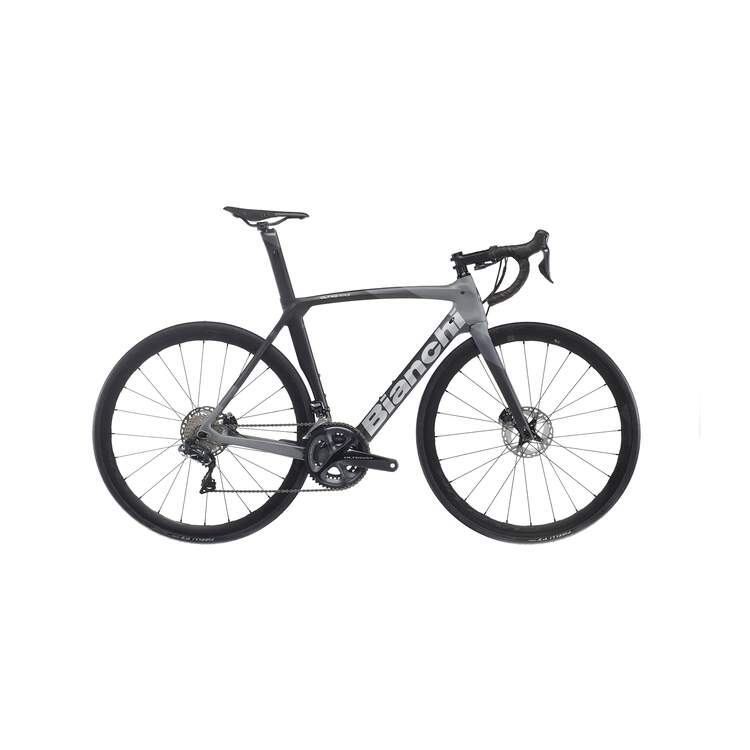

Bianchi Rennrad OLTRE XR3 DISC Shimano Ultegra 11sp - 2023 XB 61
Kaufen Bianchi Rennrad OLTRE XR3 DISC Shimano Ultegra 11sp - Preis 2022
Codegruppe: YQBK7/YRBK7
Produktspezifikationen
Datasheet PDF
Rahmengröße: | 47 50 53 55 57 59 61 |
Farbe: | XW: Frozen White/CK16 shade XC: Graphite Race/CK16 shade XB: Graphite Race/Grey shade Matt |
SERVIZIO CORSA RADSPORT GMBH: | I99 |
Farbe: | XB: Graphite Race/Grey shade Matt+ Metal MirrorLogo Glossy XC: Graphite Race/CK16 shade+ White Logo Full Glossy XW: White/CK16 shade+ Soft Black Logo Full GLossy |
Rahmen: | OLTRE XR3 Bianchi CV carbon, mechanical/electronic, seat stay section UTSS SS, HT with integrated fork, carbon dropout shape, BB-PressFit 86,5x41 Disc brake flat mount, thru axle 12 x 142, sizes 47-50-53-55-57-59-61cm |
Sattelstützenklemme: | included in the frame |
Steuersatz: | Fsa Orbit C-40-ACB ; NO.42/ACB, Sealed 1-1/8 ACB Top, 1.5" ACB Btm; Standard 15mm top cover alloy |
Gabel: | Full Carbon Aero Road 1.5">1.1/8" integrated head , Disc brake flat mount, thru axle 12x100 |
Schaltwerk: | Shimano RD-R8000, Ultegra SS 11sp top normal shadow design, direct attachment, compatible with low gear 25-30T for double |
Stengel: | ST199A 3D Forged alloy 6061, raise +/ - 6°, height 38mm, Oversize, 1.1/8", Ext: 70mm-44, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm |
Umwerfer: | Shimano FD-R8000 Ultegra for rear 11-speed, down swing, band type (34.9mm), CS angle: 61-66 for 46/53T cl: 43,5mm |
Kette: | Shimano Ultegra CN-HG701-11, for 11-speed (road/mtb compatibile), w/o end pin, w/ampoule type connect pin X1 |
Code: | YRBK7 |
Bremse: | Shimano BR-R8070 Hydraulic disc brake, included in the shifter |
Reifen: | Pirelli P7, 700 x 28c, 60TPI |
Lenker: | RA83A Aero Compact, alloy 6061 diam. 31,8mm, reach 74mm, drop 116mm, Size: 400mm-47/53cm, 420mm-55/59cm, 440mm-61cm |
Bremsschalthebel: | included |
Sattelstütze: | Reparto Corse Full Carbon Aero special dimension; special Clamp type with alloy head adjustable and reversible +/- 35mm; lenght: 250mm-47cm, 300mm-50/53cm, 350mm 55/59, 380/61cm, Setback (25mm/+10mm), EL271 alloy 6061 clamp |
Sattel: | Fi'zi:k Antares R7, cover microtex microfiber black /CK, shell nylon carbon reinforced WingFlex, rail S alloy, lenght/wide 274x142mm |
Schalter: | Shimano Ultegra hydraulic disc brake for road Disc-brake assembled set/J-kit direct, Ultegra, ST-R8020(L), BR-R8070(F), front flat mount for 160mm rotor, resin pad(w/fin), hose SM-BH90 1000mm black + ST-R8025(L) only for frame sizes 47-50-53 Disc-brake assembled set/J-kit direct, Ultegra, ST-R8020(R), BR-R8070(R),rear flat mount, w/o adapter for 20mm Mount Thickness, resin (w/fin), hose SM-BH90 1700mm black + ST-R8025(R) only for frame sizes 47-50-53 Mount adapter for rear road disc brake mount, SM-MA-R160D/D, fixing bolt X2, snap retainer X1, washer X2 Small parts for SM-BH90 |
Kurbelset: | Shimano FC-R8000, Ultegra hollowtech II, for rear 11- speed, 170-172-175mm, 50x34T w/o BB parts, Crank Length: 170mm-47/54cm, 172.5mm-55/59cm, 175mm-61cm |
Untere Halterung: | Shimano SM-BB72-41B, press fit for road, right & left adapter |
Kassette: | Shimano CS-R8000,Ultegra 11sp, 11-12-13-14-15-17-19-21-24-27-30T |
Scheibenrotor: | Shimano SM-RT800 center look 160mm, Rotor for disc-brake |
Rädersatz: | Fulcrum Racing 400 disc brake R400 aluminium asymetric 622x19c, hub alloy, 2 WAY FIT tubeless ready, Height 34mm, 24 straight pull steel spokes, bearing standard industrial, front hub 12mm x 100mm - rear hub 12 mm x 142mm, thru axle, center lock AFS, HG11 |
Griffband: | Ribbon cork + new plug carbon look with Bianchi logo |
Vorbau: | ST199A 3D Forged alloy 6061, raise +/ - 6°, height 38mm, Oversize, 1.1/8", Ext: 70mm-44, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm |
