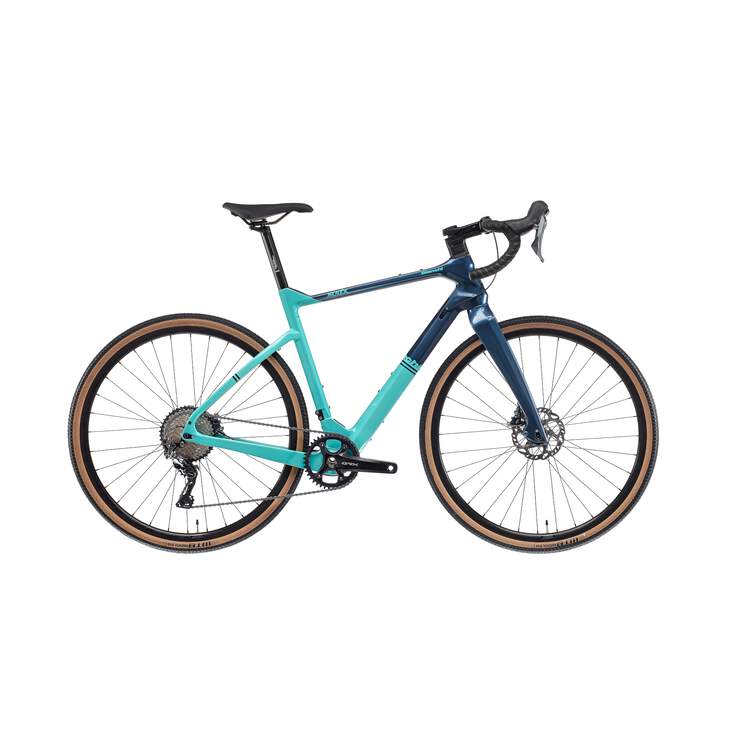

Bianchi ARCADEX CARBON ALL ROAD DISC Shimano GRX 600 1x11sp - 2022 GX: CK16/Blue notes Full Glossy XS
Acheter Bianchi ARCADEX CARBON ALL ROAD DISC Shimano GRX 600 1x11sp - Prix 2022
Code groupe: YQBX3/YRBX3
Produktspezifikationen
Datasheet PDF
| Taille du cadre: | XL L M XS S |
| Couleur: | GY: Gold Storm/Blue notes Full Glossy GX: CK16/Blue notes Full Glossy |
| SERVIZIO CORSA RADSPORT GMBH: | I99 |
| Collier de tige de selle: | included in the frame |
| Stengel: | Reparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061 , 1 1/4", raise 0°, plastic adaptor for hose cover 1 1/4", Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL |
| Cadre: | CARBON ALL ROAD 1.5" aheaset ,seat post diam. 31.6mm, thru axle 12x142mm, flat mount disc version, Pressfit 41 , compatible with 42mm tire and mudguard, Sizes: XS-S-M-L-XL |
| Frein à main: | included |
| Interrupteur: | Shimano GRX 600 11sp Hydraulic disc brake - Disc-brake assembled set/J-kit direct , GRX, BL-RX600-L(L), BR-RX400(F), for 160mm rotor, resin (w/o fin), 1000mm hose(SM-BH90 black) - Disc-brake assembled set/J-kit direct, GRX, ST-RX600(R), BR-RX400(R w/o adapter, for 25mm mount thickness, resin (w/o fin), 1700mm hose (SM-BH90 black)+ Mount adapter for rear road disc brake mount, SM-MA-R160D/D, fixing bolt X2, snap retainer X1, washer X2black |
| Gabel: | Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm |
| Pédalier: | Shimano FC-RX600, GRX, 11sp, 2-pcs FC, 40T w/o BB parts, CrankLength: 170mm-XS/S, 172.5mm-M/L, 175mm-XL |
| Support inférieur: | Shimano BB-RS500-PB, press fit for road, right & left adapter, bearing |
| Cassette/paroi libre: | Shimano CS-M7000, SLX, 11sp 11-13-15-17-19-21-24-28-32-37-42T |
| Derailleur arriere: | Shimano RD-RX812, GRX 11-speed, top normal shadow plus design, direct attachment, direct mount compatible |
| Scheibenrotor: | Shimano SM-RT70 rotor for disc brake center lock , with Ice Technology, S 160mm w/lock ring |
| Front-nabe: | Shimano HB-RS470, road disc, center lock 32h for 12mm Thru axle type (w/o axle), OLD:100mm, w/o rotor mount cover, w/o lock ring |
| Hinternabe: | Shimano FH-RS470, road disc, center lock (w/o lock ring) 10/11sp for 12mm Thru axle type (w/o axle), 32h OLD:142mm, w/o rotor mount cover |
| Ensemble jante/roue: | GD24 disc 700c 622-21, profile 24mm, sleeve join, 32hole, tubeless ready, no eyelet, black w/o logo |
| Bande de poignée: | Ribbon cork + new plug carbon look |
| Bremse: | Shimano BR-RX400 flat mount hydraulic disc brake, included in the shifter |
| Chaîne: | Kmc X11-1 EPT, 11sp, EPT finish |
| Code: | YRBX3 |
| Couleur: | GX: CK16/Blue notes Full Glossy GY: Gold Storm/Blue notes Full Glossy |
| Pneus: | WTB Riddler Comp 700 x 37c, 30tpi Casing, Wire Bead |
| Tige de selle: | SP02.1 Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm-XS, 350mm-S/M/L/XL |
| Tige: | Reparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061 , 1 1/4", raise 0°, plastic adaptor for hose cover 1 1/4", Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL |
| Liens: | 68A Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm, size: 40cm-XS/S, 42cm-M/L, 44cm-XL |
| Casque: | FSA SMR HS with 1-1/8? custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36°/45° ACB |
