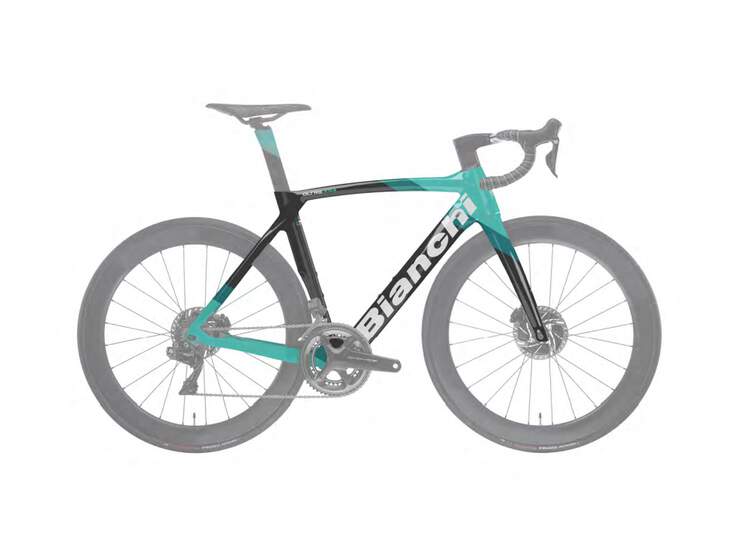

Bianchi OLTRE XR.4 CV DISC - FRAMESET - handlebar alloy ACR separate - 2022
Acheter Bianchi OLTRE XR.4 CV DISC - FRAMESET - Prix 2022
Code groupe: XQB02X /XRB02X
Produktspezifikationen
Datasheet PDF
| SERVIZIO CORSA RADSPORT GMBH: | I99 |
| Couleur: | XC: Graphite Race/CK16 shade+ White Logo Full Glossy *Tavolozza colours |
| Cadre: | OLTRE XR.4 Aero carbon _mechanical/electronic, headset 1.5" , BB-PressFit 86,5x41, Disc brake internal cable, flat mount, thru axle 12 x 142mm, sizes 47-50-53-55-57-59-61cm |
| Collier de tige de selle: | included in the frame |
| Schrauben / Hardware: | AL7075-T6 large button head Torx M5*14mm x 4pcs, colour celeste bianchi with Bianchi logo - Nut stainless steel front brake 35mm M6 - Nut stainless steel rear brake 18mm M6 - Washer stainless steel front brake 13x3,5 |
| Casque: | Fsa Orbit custom 5D ACR top cover UD Carbon, lower 1.5"- top 1 .5", 36°- 45° ACB bearing, w/Carbon custom cone spacer specific for Metron DISC integrated handlebar, for 52mm/52mm OD head tube |
| Gabel: | Full Carbon aero 1.5" integrated head, Disc Brake internal cable, flat mount, thru axle 12x100 |
| Stengel: | Reparto Corse NS ACR ST-OS-160, material 3D Forged/CNC AL6061, bolt CrMo, clamp. 31.8mm / steerer diam. 28.6mm / angle -6° , Di2 compatible, Ext: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59cm, 130mm-61cm |
| Code: | XRB02X |
| Liens: | Reparto Corse by FSA Energy SCR Compact, HB-RD-257S/PSH/Di2, Double Butted and tapered AL7050 material, diam.31.8mm, drop 125mm, reach 80mm, 4º Outward Bend, C - C Width (mm) 40/42/44cm, Size:400mm-47/50cm, 420mm-53/57cm, 440mm-59/61cm |
| Tige de selle: | Reparto Corse Full Carbon Aero special dimension; special Clamp type with alloy head adjustable and reversible +/- 35mm; lenght: 250mm-47cm, 300mm-50/53cm, 350mm 55/59cm, 380-61cm, Setback: 25mm/+10mm |
| Tige: | Reparto Corse NS ACR ST-OS-160, material 3D Forged/CNC AL6061, bolt CrMo, clamp. 31.8mm / steerer diam. 28.6mm / angle -6° , Di2 compatible, Ext: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59cm, 130mm-61cm |
