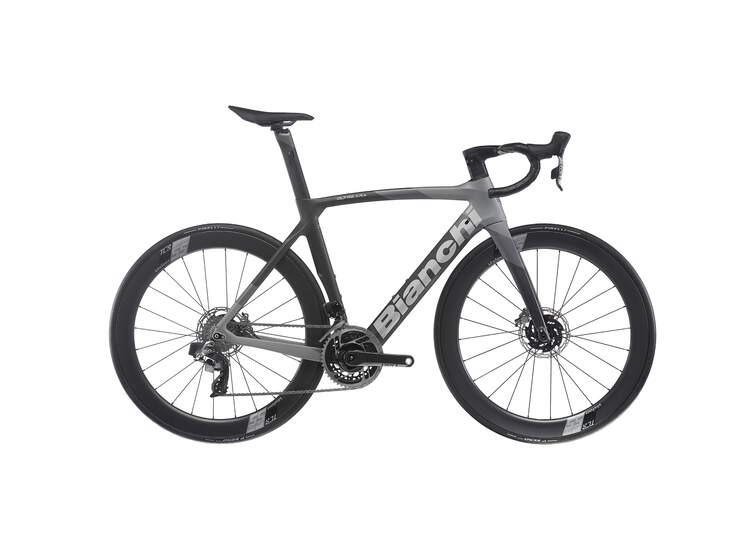

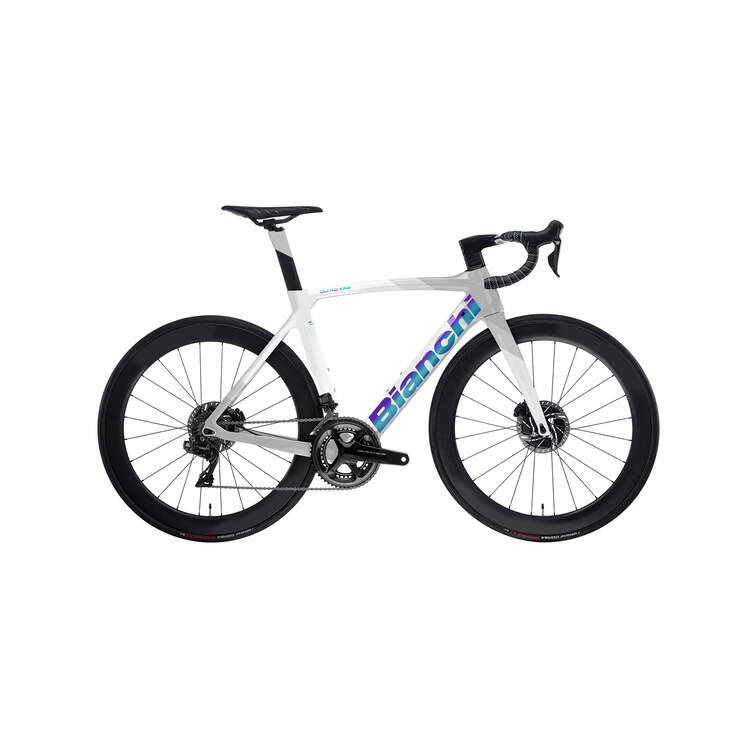

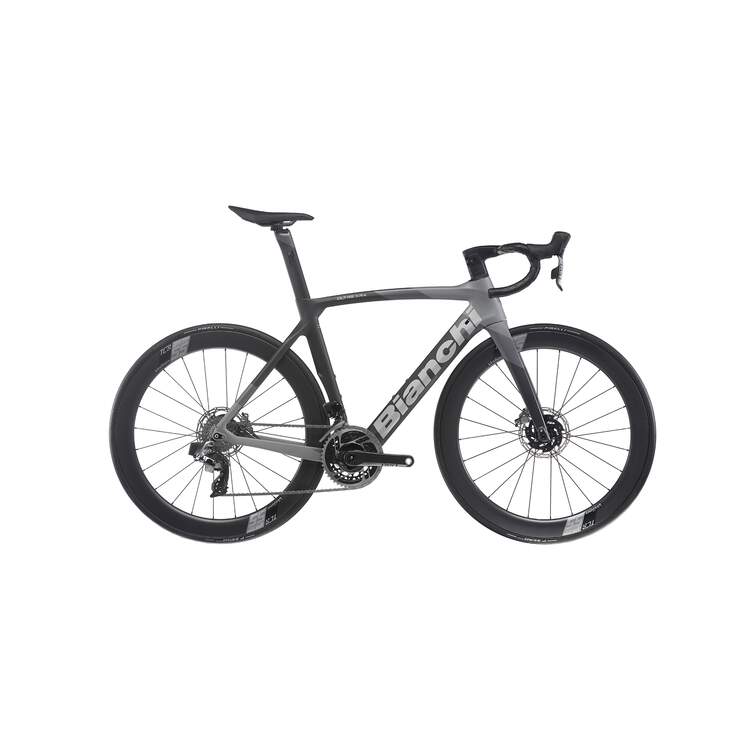

Vélo Route Bianchi OLTRE XR4 DISC Shimano Dura Ace-Di2 12sp - 2023
Acheter Bianchi Rennrad OLTRE XR4 DISC Shimano Dura Ace-Di2 12sp - Prix 2022
Code groupe: YQB15/YRB15
Produktspezifikationen
Datasheet PDF
| Taille du cadre: | 47 50 53 55 57 59 61 |
| Couleur: | XW: Frozen White/CK16 shade *Tavolozza colours XC: Graphite Race/CK16 shade XB: Graphite Race/Grey shade Matt |
| SERVIZIO CORSA RADSPORT GMBH: | I99 |
| Couleur: | XB: Graphite Race/Grey shade Matt + Metal Mirror Logo Glossy XC: Graphite Race/CK16 shade + White Logo Full Glossy XW: White/CK16 shade+ Soft BlackLogo Full Glossy*Tavolozza colours |
| Cadre: | OLTRE XR4 Bianchi CV Aero carbon _mechanical/electronic, headset 1.5" , BB-PressFit 86,5x41, Disc brake internal cable, flat mount, thru axle 12 x 142mm, sizes 47-50-53-55-57- 59-61cm |
| Collier de tige de selle: | included in the frame |
| Casque: | Fsa Orbit custom 5D ACR top cover UD Carbon, lower 1.5"- top 1 .5", 36°- 45° ACB bearing, w/Carbon custom cone spacer specific for Metron DISC integrated handlebar, for 52mm/52mm OD head tube |
| Gabel: | Full Carbon aero 1.5" integrated head, Disc Brake internal cable, flat mount, thru axle 12x100 |
| Derailleur arriere: | Shimano RD-R9250, DURA-ACE Di2 12sp, top normal shadow design, direct attachment, W/TL-EW300, 34T Max Low Sprocket |
| Stengel: | Reparto Corse Metron 5D ACR Disc Integrated Aero bar, Bar/stem Integrated, material UD Weave Carbon, drop 125mm, reach 80mm, Di2 compatible, RC'21 graphics, Ext: 100x400mm-47/50cm, 110x420mm-53/55cm, 120x420mm-57/59cm, 130x440mm-61cm |
| Dérailleur: | Shimano FD-R9250, DURA-ACE Di2, brazed-on type, down swing, top gear 46-55T, for rear 12sp |
| Chaîne: | Shimano CN-M9100, 112link for HG 12- speed |
| Code: | YRB15 |
| Bremse: | Shimano BR-R9270 Hydraulic disc brake, included in the shifter |
| Pneus: | Pirelli P ZERO Race , 26-622, 127TPI, Aramid breaker |
| Liens: | included in the stem |
| Frein à main: | included |
| Tige de selle: | Reparto Corse Full Carbon Aero special dimension; special Clamp type with alloy head adjustable and reversible +/- 35mm, lenght: 250mm-47cm, 300mm-50/53cm, 350mm 55/59, 380-61cm, Setback (25mm/+10mm), EL271 alloy 6061 clamp |
| Selle: | Fi'zi:k Argo Vento R1 140mm ; shell nylon carbon reinforced WingFlex , rail carbon braided 7x10, Length 260mm x Width 140mm |
| Interrupteur: | Shimano Durace Di2 hydraulic disc brake for road Disc-brake assembled set/J-kit direct, DURA-ACE, ST-R9270(L), BR-R9270(F), for 160mm rotor, resin pad(w/fin), hose SM-BH90 1000mm Disc-brake assembled set/J-kit direct, DURA-ACE, ST-R9270(R), BR-R9270(R), w/o adapter for 20mm Mount Thickness, resin (w/fin), hose SM-BH90 1700mm Mount adapter for rear road disc brake mount, SM-MA-R160D/D, fixing bolt X2, snap retainer X1, washer X2 Small parts for SM-BH90 |
| Pédalier: | Shimano FC-R9200, DURA-ACE hollowtech 2, for rear 12- speed, 170-172-175mm, 50x34T w/o BB parts, Crank Length: 170mm-47/54cm, 172.5mm-55/59cm, 175mm-61cm |
| Support inférieur: | Shimano SM-BB92-41B , press fit type for road, right & left adapter, bearing |
| Cassette/paroi libre: | Shimano CS-R9200 DURA-ACE 12sp, 11-12-13-14-15-16-17-19-21-24-27-30T |
| Scheibenrotor: | Shimano RT-MT900 center lock type w/Ice Tech, 160mm front and rear |
| Front-nabe: | Reparto Corse DR835F-CL (HH12X100) 24HX14G, Hub shell : AL6082-T6, Axle material: AL 7075-T6, Ball bearing, centerlock, Anodized black, with rotor lockring |
| Hinternabe: | Reparto Corse DR835SRA-CL 24HX14G; Hub shell : AL6082-T6, Axle material: AL 7075-T6, 4 Ball bearing, centerlock, Anodized black, with rotor lockring, HG |
| Ensemble jante/roue: | Vision SC55 |
| Stromkabel: | Shimano Electric wire, EW-SD300, for external routing, 500mm (FD) Electric wire, Shimano EW-SD300, for external routing, 1200mm (RD) |
| Ladegerät/pwr-kabel: | Shimano Charging cable, EW-EC300, 1700mm |
| Bande de poignée: | Black soft Microfiber tapes+EVA-139 Shockproof 200*3cm with 4 line hole Black/Celeste color and VLP-56 BK plug Black soft Microfiber tapes+EVA-139 Shockproof 200*3cm with 4 line hole Black color and VLP-56 BK plug |
| Tige: | Reparto Corse Metron 5D ACR Disc Integrated Aero bar, Bar/stem Integrated, material UD Weave Carbon, drop 125mm, reach 80mm, Di2 compatible, RC'21 graphics, Ext: 100x400mm-47/50cm, 110x420mm-53/55cm, 120x420mm-57/59cm, 130x440mm-61cm |
