Size: |
47 50 53 55 57 59 61 63 |
|
Color: |
5K: CK16/ Black Full Glossy IP: CK16/tone on tone glossy |
| Color: | IP: CK16 aquamarine |

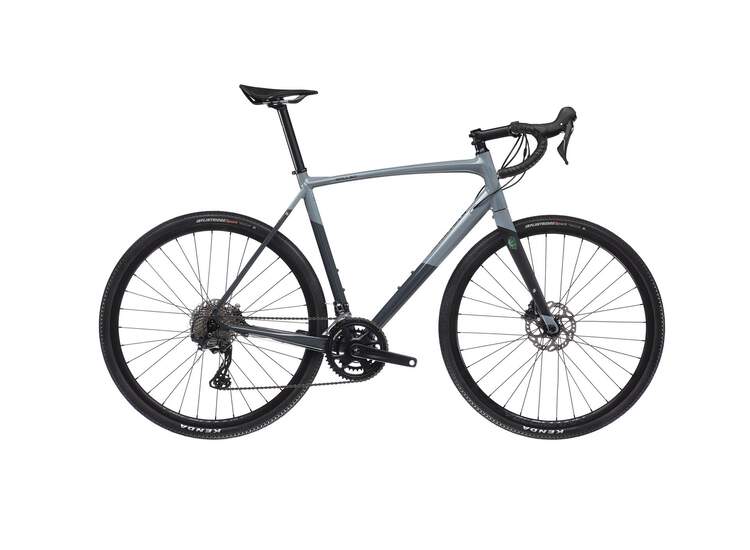

| Frame: | TC17-IMPULSO ALL ROAD ALU 1.1/8 aheaset ,seat post diam. 31.6mm, thru axle 12x142mm, flat mount disc version, PF41 SHIMANO, compatible with 40mm tire and mudguard and rear carrier predisposition, sizes 47-50-53-55-57-59-61-63cm |
| Seatpost Clamp: | MX-112C Aluminium clamp, light weight, 35mm anti-crimp |
| Headset: | Fsa NO.8B/ZS4D 1-1/8" semi-integrated lower part + integrated upper part, w/H2166B 15mm Top cover tapered 46mm/50 OD head tube |
| Fork: | Full Carbon 1"1/8, flat mount, disc brake, thru axle 12x100mm |
| Rear Derailleur: | Shimano RD-RX810, GRX 11-speed, top normal shadow plus design, direct attachment |
| Stengel: | Velomann ST182A, Alloy 6061, raise +/ - 7°, height 38mm, Oversize, 1.1/8", Ext: 70mm-47cm, 90mm-50/53cm, 100mm-55cm, 110mm-57/59cm, 120mm-61/63cm |
| Derailleur: | Shimano FD-RX810, GRX for rear 11-speed, down-swing, down pull, braze-on type, 61-66°, for top gear:46-50T, CL:46mm, Clamp band adapter, SM-AD91, L-size(34.9mm) |
| Chain: | Shimano CN-HG601-11, for 11-speed, w/end pin |
| Code: | YRB8C |
| Brake: | Shimano BR-RX400 flat mount hydraulic disc brake, included in the shifter |
| Tires: | Kenda Alluvium 700x40, 60TPI, K1226 |
| Handlebars: | Velomann RA68A Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm, size: 40cm-47/50/53, 42cm 55/57/59, 44cm 61/63 |
| Brake lever: | included |
| Seat Post: | Velomann SP02.1 Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, length: 350mm-47/63cm |
| Saddle: | Selle Royal Velomann 2302HRN, hole, steel rail, cover PU soft touch, lenght/wide 280x145mm |
| Shifter: | Shimano GRX 810 11sp Hydraulic disc brake - Disc-brake assembled set/J-kit direct , GRX, ST-RX810(L), BR-RX810(F) for 160mm rotor, resin (w/fin), 1000mm hose(SM-BH90 black) - Disc-brake assembled set/J-kit direct, GRX, ST-RX810(R), BR-RX810(R) w/o adapter, for 20mm mount thickness, resin (w/fin), 1700mm hose (SM-BH90 black) + Mount adapter for rear road disc brake mount, SM-MA-R160D/D, fixing bolt X2, snap retainer X1, washer X2black |
| Crankset: | Shimano FC-RX810-2, GRX, 11sp, holloetech II, 170-172.5-175mm, 48-31T w/o BB parts, Crank Length: 170mm-47/54cm, 172.5mm-55/59cm, 175mm-60/63cm |
| Bottom Bracket: | Shimano SM-BB72-41B, press fit for road, right & left adapter, bearing |
| Cassette/freewheel: | Shimano CS-HG70011, 11sp, 11-13-15-17-19-21-23-25-27-30-34T |
| Disc Rotor: | Shimano SM-RT70 rotor for disc brake center lock , with Ice Technology, S 160mm w/lock ring |
| Front Hub: | Formula CL-712 road disc , alloy 32h, center lock, J-bend, thru axle 12x100mm, w/o QR w/o logo. 2SB bearing |
| Rear Hub: | Formula RXC-142S road disc , center lock, J-bend, thru axle 12xx142mm, w/o QR w/o logo 4SB bearing for Shimano 10/11speed |
| Rim/wheelset: | Velomann GD24 disc 700c 622-21, profile 24mm, sleeve join, 32hole, tubeless ready, no eyelet |
| Grip/tape: | Ribbon cork + new plug carbon look |
| Stem: | Velomann ST182A, Alloy 6061, raise +/ - 7°, height 38mm, Oversize, 1.1/8", Ext: 70mm-47cm, 90mm-50/53cm, 100mm-55cm, 110mm-57/59cm, 120mm-61/63cm |
