Bianchi OLTRE XR.4 CV DISC - FRAMESET - integrated handebar VISION 5D ACR DISC / stem- 2023 XB: Graphite Race/Grey shade Matt 53
Buy Bianchi OLTRE XR.4 CV DISC - FRAMESET - Price 2022
Code group: XQB02/XRB02
Product specifications
Datasheet PDF
| Size: | 47 50 53 55 57 59 61 |
| Color: | XW: Frozen White/CK16 shade *Tavolozza colours XC: Graphite Race/CK16 shade XC: Graphite Race/CK16 shade *Tavolozza colours XB: Graphite Race/Grey shade Matt |
| Color: | XC: Graphite Race/CK16 shade+ White Logo Full Glossy *Tavolozza colours |
| Bolts / Hardware: | AL7075-T6 large button head Torx M5*14mm x 4pcs, colour celeste bianchi with Bianchi logo - Nut stainless steel front brake 35mm M6 - Nut stainless steel rear brake 18mm M6 - Washer stainless steel front brake 13x3,5 |

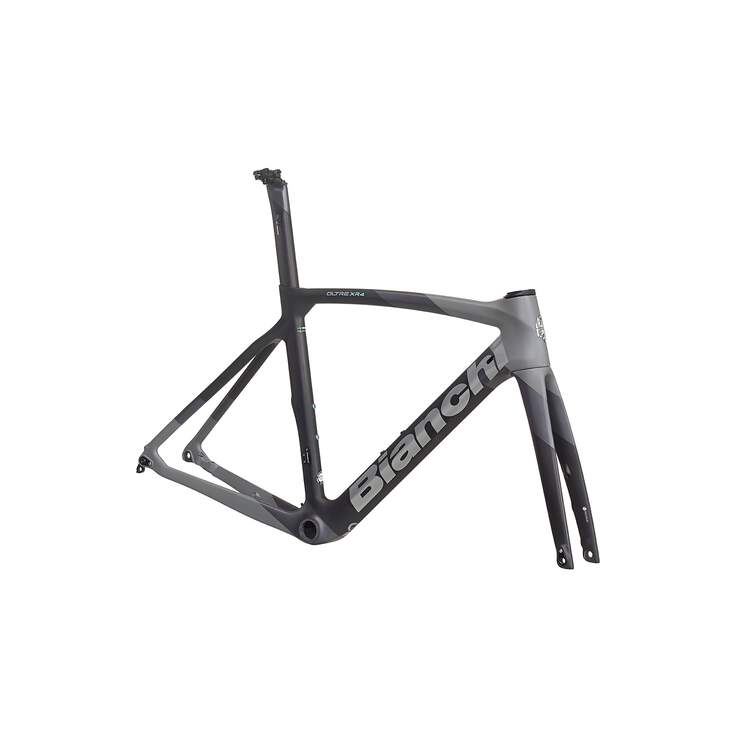

| Frame: | OLTRE XR.4 Aero carbon _mechanical/electronic, headset 1.5" , BB-PressFit 86,5x41, Disc brake internal cable, flat mount, thru axle 12 x 142mm, sizes 47-50-53-55-57-59-61cm |
| Seatpost Clamp: | included in the frame |
| Stengel: | Reparto Corse NS ACR ST-OS-160, material 3D Forged/CNC AL6061, bolt CrMo, clamp. 31.8mm / steerer diam. 28.6mm / angle -6° , Di2 compatible, Ext: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59cm, 130mm-61cm |
| Headset: | Fsa Orbit custom 5D ACR top cover UD Carbon, lower 1.5"- top 1 .5", 36°- 45° ACB bearing, w/Carbon custom cone spacer specific for Metron DISC integrated handlebar, for 52mm/52mm OD head tube |
| Fork: | Full Carbon aero 1.5" integrated head, Disc Brake internal cable, flat mount, thru axle 12x100 |
| Code: | XRB02I |
| Handlebars: | Reparto Corse by FSA Energy SCR Compact, HB-RD-257S/PSH/Di2, Double Butted and tapered AL7050 material, diam.31.8mm, drop 125mm, reach 80mm, 4º Outward Bend, C - C Width (mm) 40/42/44cm, Size:400mm-47/50cm, 420mm-53/57cm, 440mm-59/61cm |
| Seat Post: | Reparto Corse Full Carbon Aero special dimension; special Clamp type with alloy head adjustable and reversible +/- 35mm; lenght: 250mm-47cm, 300mm-50/53cm, 350mm 55/59cm, 380-61cm, Setback: 25mm/+10mm |
| Stem: | Reparto Corse NS ACR ST-OS-160, material 3D Forged/CNC AL6061, bolt CrMo, clamp. 31.8mm / steerer diam. 28.6mm / angle -6° , Di2 compatible, Ext: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59cm, 130mm-61cm |
