This is a Bianchi bike(s) in the archive and unfortunately no longer available. The current version is available here: Current catalog

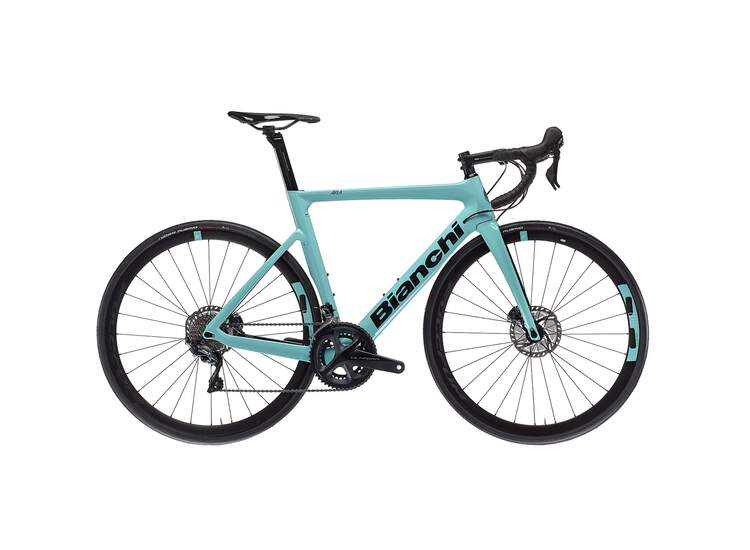

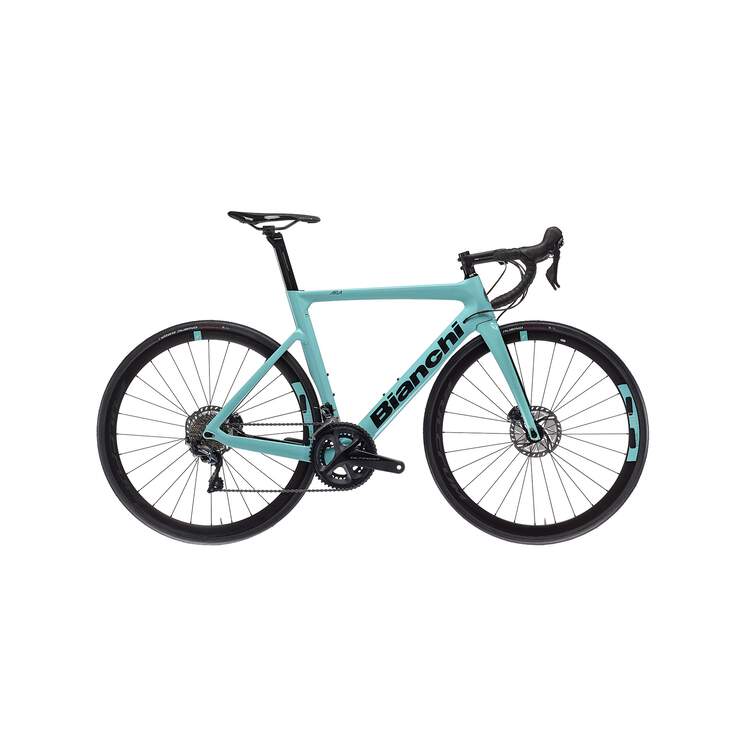

Bianchi Road Bike ARIA DISC Shimano 105 11sp - 2022

Please choose
Please choose
Framesize (What suits me?)
Artikel-Nr.:  YRB8DI
3.187,00 €

including 19% VAT. , no shipping costs to: DE , shipping

There are variations of this item. Please select the variation you wish.

Item number: YRB8DI


Buy Bianchi road bike ARIA DISC Shimano 105 11sp - Price 2022

Code group: YQB8D/YRB8D

Product specifications Datasheet PDF

Size: 44 47 50 53 55 57 59 61
Color: 2R: Black/ Brillant Graphite Full Glossy 5K: CK16/ Black Full Glossy
Versand: Ready to Ship
Seatpost Clamp:included in the frame
Stengel:ST199A 3D Forged alloy 6061, raise +/ - 6°, height 38mm, Oversize, 1.1/8", Ext: 70mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm,120mm-59-61cm
Frame:Aria aero carbon, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.1/8", integrated seat clamp, full carbon dropout, aero shape DT-ST, Disc brake flat mount, thru axle 12 x 142, sizes 44-47-50-53-55-57-59-61cm
Brake lever:included
Shifter:Shimano 105 11sp Hydraulic disc brake - Disc-brake assembled set/J-kit direct , 105,ST-R7020(L), BR-R7070(F), black, for 160mm rotor, resin (w/o fin), 1000mm hose(SM-BH90 black) + ST-R7025(L) only for frames sizes 47- 50-53 - Disc-brake assembled set/J-kit direct, 105, ST-R7020(R), BR-R7070(R), black, w/o adapter, for 20mm mount thickness, resin (w/o fin), 1700mm hose (SM-BH90 black) + ST-R7025(R) only for frames sizes 47-50-53 Mount adapter for rear road disc brake mount, SM-MA-R160D/D, fixing bolt X2, snap retainer X1, washer X2black Small parts for SM-BH90
Fork:Full Carbon Aero Road 1.4">1.1/8" integrated head , Disc brake flat mount, thru axle 12x100
Crankset:Shimano FC-R7000, 105, for rear 11-speed, hollowtech II, 50x34T w/o CG, w/o BB parts, Crank Length: 165mm-44cm, 170mm-47/54cm, 172.5mm-55/59cm, 175mm-61cm
Bottom Bracket:Shimano SM-BB72-41B, press fit for road, right & left adapter, bearing
Cassette/freewheel:Shimano CS-R7000, 105, 11sp, 11-12-13-14-15-17-19-21-24-27-30T
Rear Derailleur:Shimano RD-R7000, 105, SS 11-speed, top normal shadow design, direct attachment
Disc Rotor:Shimano SM-RT70 rotor for disc brake center lock , with Ice Technology, S 160mm w/lock ring
Derailleur:Shimano FD-R7000-L, 105, for rear 11sp, down-swing, brazed-on type,cs-angle: 61-66, for top gear:46-53T, CL :43.5mm
Rim/wheelset:Fulcrum Racing 818 disc brake Aluminium C19 2WF-R Tubeless ready 622x19c, hub alloy J-type, sleeve joint rim, height 34mm, 24 spokes steel ED black round , bearing standard industrial, thru axle, center lock AFS, front HH12 - rear HH12/142, HG11
Grip/tape:Ribbon cork + new plug carbon look
Brake:Shimano BR-RS505 flat mount hydraulic disc brake, included in the shifter
Chain:Kmc X11-1 EPT, 11sp, EPT finish
Color:5K: CK16/ Black Full Glossy 2R: Black/ Brillant Graphite Full Glossy
Tires:Vittoria Zaffiro Pro V 700 x 28c, 26TPI, G2.0, Folding
Saddle:Selle Royal Seta S1, 1285 URN, steel rails, lenght/wide 278x144mm
Seat Post:Reparto Corse Full Carbon Aero special dimension, special Clamp type with alloy head adjustable and reversible +/- 35mm; lenght: 250mm-44cm, 300mm-47/50cm, 350mm 53/61cm, EL271 alloy 6061 clamp
Stem:ST199A 3D Forged alloy 6061, raise +/ - 6°, height 38mm, Oversize, 1.1/8", Ext: 70mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm,120mm-59-61cm
Handlebars:RA83A Aero Compact, alloy 6061 diam. 31,8mm, reach 74mm, drop 116mm, Size: 400mm-47/53cm, 420mm-55/59cm, 440mm-61cm
Headset:Fsa Orbit C-33, NO.44E, 1-1/8 Top, 1-1/4 Btm with Chrome Steel bearing,45°/45° ACB, alloy Standard 15mm top cover (H2166B) for 47mm/52mm OD head tube
Bianchi Road Bike ARIA DISC Shimano 105 11sp - 2022 Specification and technical data

Bianchi Road PDF
