Size: |
47 |
| Color: | XC: Graphite Race/CK16 shade+ White Logo
*Tavolozza colours |

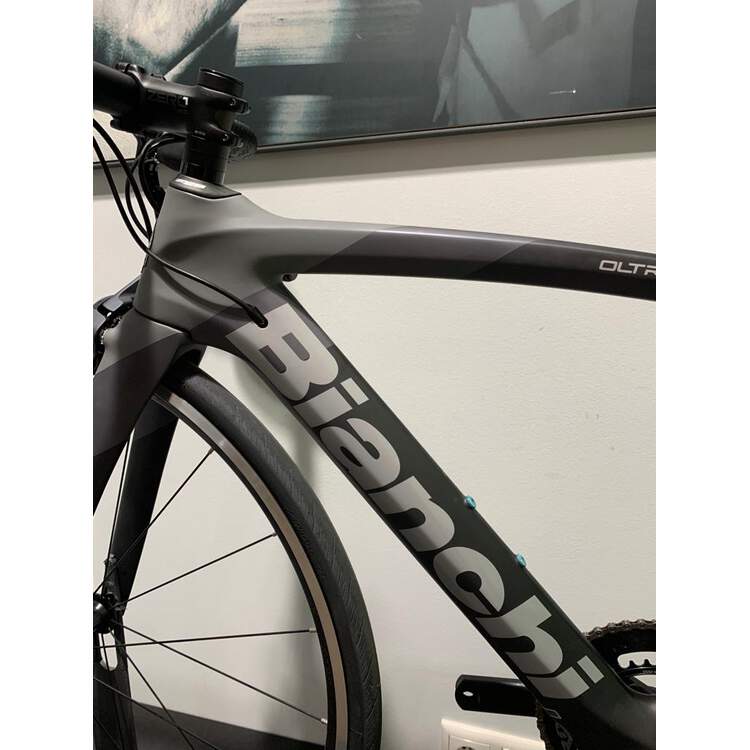

| Frame: | OLTRE XR4 Bianchi CV Aero carbon _mechanical/electronic, headset 11/4" - 11/8", direct mount brakes, BB-PressFit 86,5x41, sizes 44-47-50-53-55-57-59-61cm |
| Seatpost Clamp: | included in the frame |

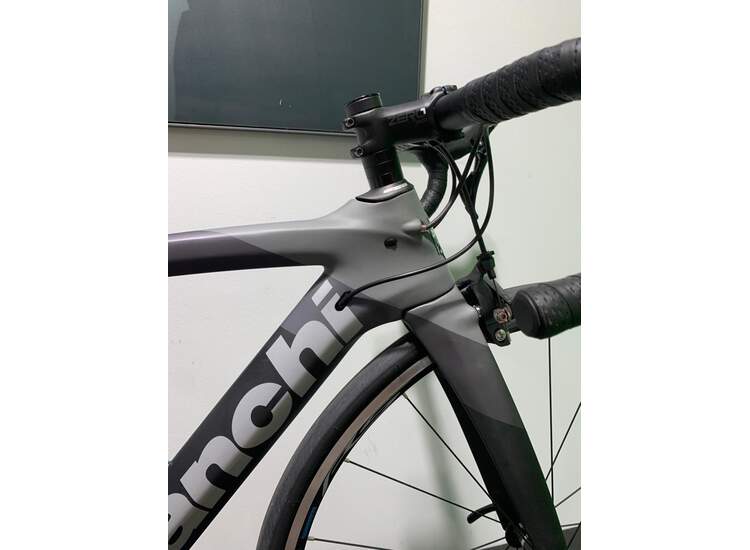

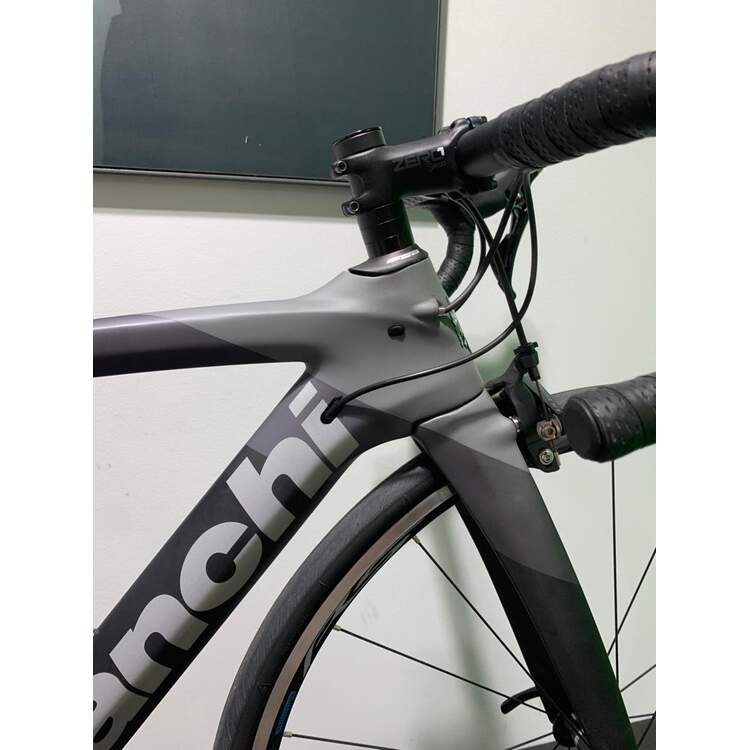

| Headset: | Fsa Orbit C-33, top cover UD Carbon 1 1/8-1 1/4, 45°- 45 ACB bearing, w/Carbon custom cone spacer H2042 specific for Metron 5D integrated handlebar, for 47mm/52mm OD head tube , NO.44/CF-R/5D |
| Fork: | Full Carbon aero 1.1/4">1.1/8" integrated head |

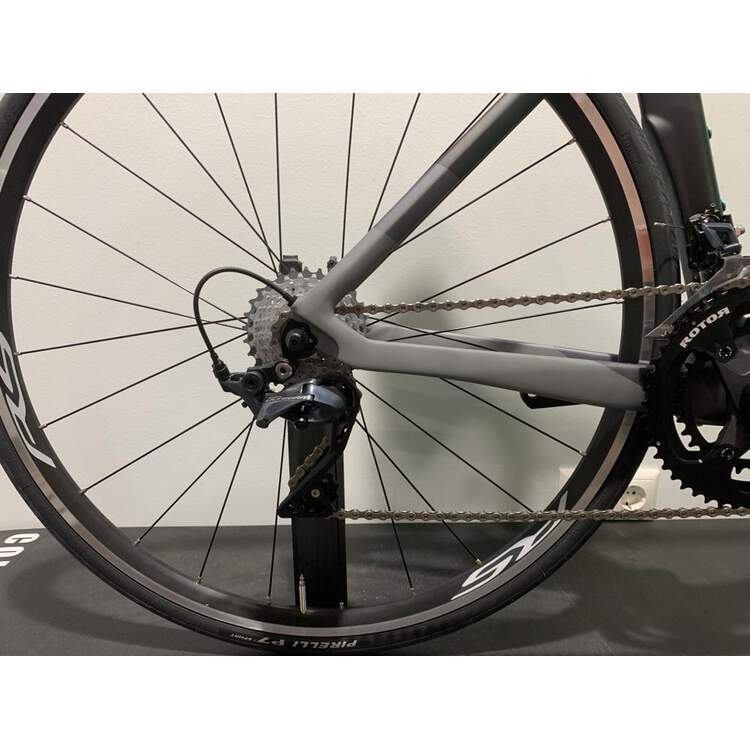

| Rear Derailleur: | Shimano RD-R8000, Ultegra SS 11sp top normal shadow design, direct attachment, compatible with low gear 25-30T for double |
| Stengel: | ST236A, 3D Forged alloy 6061, raise +/ - 7°, height 38mm, Oversize, 1 1/8", 1 piece alloy faceplate 6061, Ext: 70mm-47cm, 90mm-50cm, 100mm-53cm, 110mm-55cm, 120mm 57cm/61cm |
| Derailleur: | Shimano FD-R8000 Ultegra for rear 11sp, down swing, brazed-on type, CS angle: 61-66 for 46/53T cl: 43,5mm |
| Chain: | Shimano CN-HG701-11, for 11-speed (road/mtb compatibile), 110 links, w/o end pin, w/ampoule type connect pin X1 |
| Code: | YRBL2 |
| Brake: | Shimano
BR-R8010-F, Ultegra front, direct mount type, shoe: R55C4
BR-R8010-RS, Ultegra rear seat stay mount type, shoe: R55C4 |
| Tires: | Pirelli Sport 700x26 |
| Handlebars: | JD-RA83A.2 Aero Compact, alloy 2014 diam. 31,8mm, reach 80mm, drop 130mm, Size: 400mm-44/50cm , 420mm-53/57cm, 440mm-59/61cm |
| Brake lever: | included |
| Seat Post: | Reparto Corse Full Carbon Aero special dimension; special Clamp type with alloy head adjustable and reversible +/- 35mm, lenght: 250mm-47cm; 300mm-50/53cm; 350mm 55>59; 380-61cm, Setback (25mm/+10mm), EL271 alloy 6061 clamp |
| Saddle: | Selle Italia Seto SL |
| Shifter: | Shimano ST-R8000, Ultegra 2x11sp |

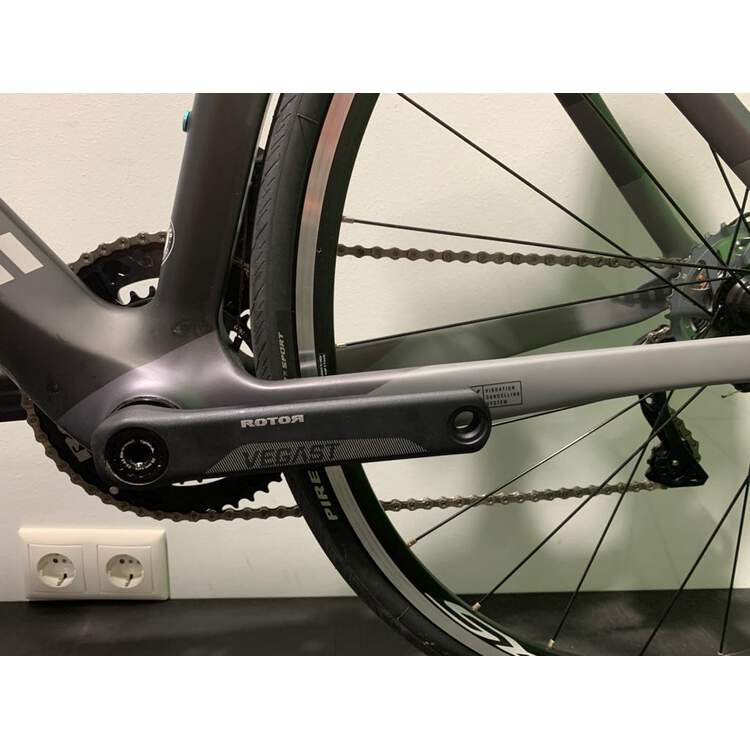

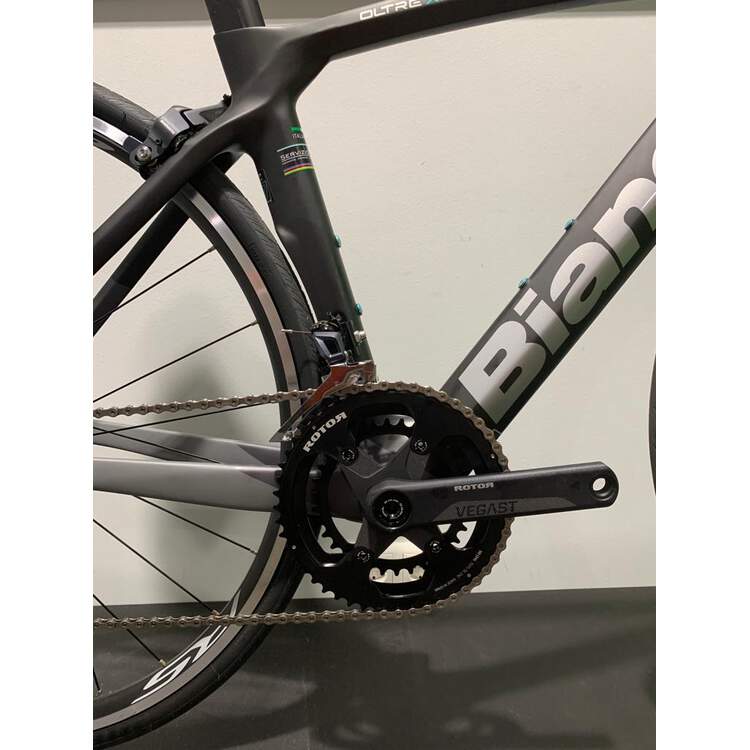

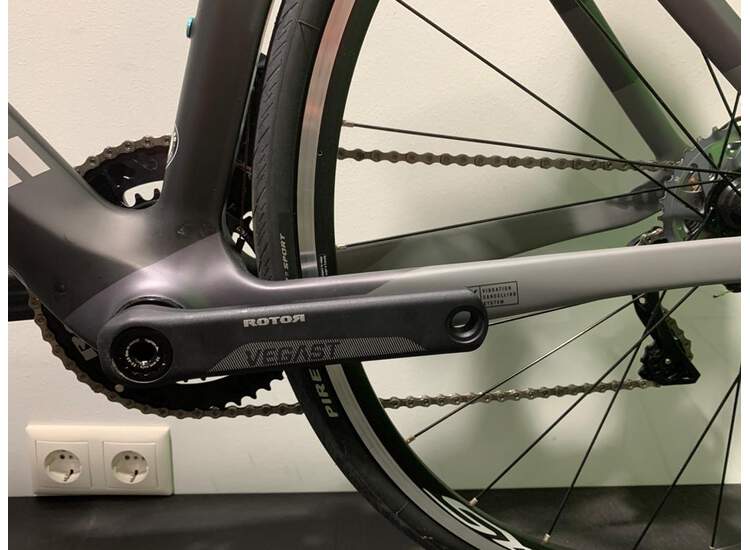

| Crankset: | Rotor Vegast 170mm 50/34 |
| Bottom Bracket: | Shimano SM-BB72-41B, press fit for road, right & left adapter, bearing |
| Cassette/freewheel: | Miche 11 - 30 |
| Rim/wheelset: | Shimano RS 100 |
| Grip/tape: | Black soft Microfiber tapes+EVA-139 Shockproof 200*3cm with 4 line hole Black/Celeste color and VLP-56 BK plug
Black soft Microfiber tapes+EVA-139 Shockproof 200*3cm with 4 line hole Black color and VLP-56 BK plug |
| Stem: | ST236A, 3D Forged alloy 6061, raise +/ - 7°, height 38mm, Oversize, 1 1/8", 1 piece alloy faceplate 6061, Ext: 70mm-47cm, 90mm-50cm, 100mm-53cm, 110mm-55cm, 120mm 57cm/61cm |
