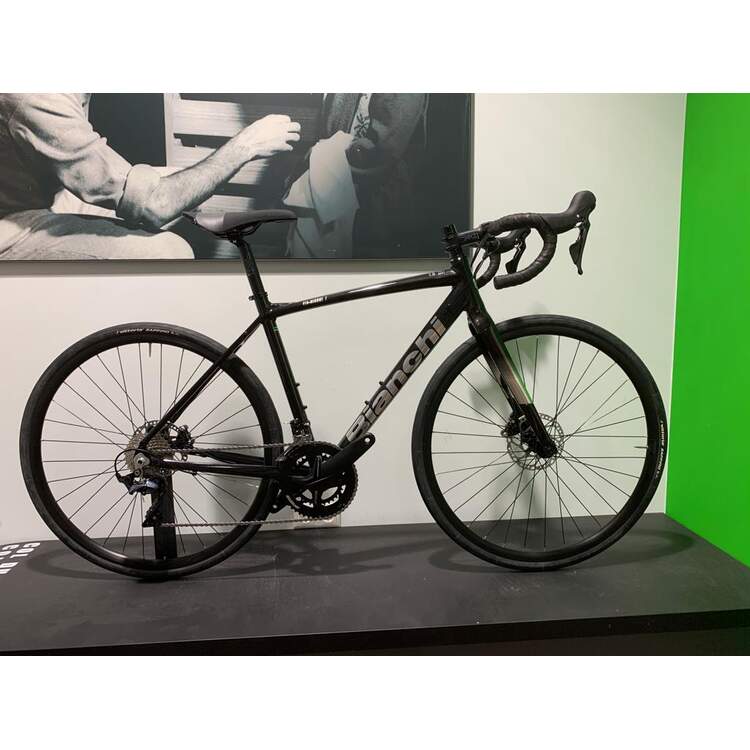

Bianchi bike VIA NIRONE 7 Disc Shimano 105 11sp - 2023 N2: Serial Black/Titanium Silver Full Glossy 46
Buy Bianchi road bike VIA NIRONE 7 Disc Shimano 105 11sp - Price 2022
Code group: YQB4C/YRB4C
Product specifications
Datasheet PDF
| Size: | (63) 46 50 53 55 57 59 61 |
| Color: | N2: Serial Black/Titanium Silver Full Glossy ND: CK16/Titanium Silver Full Glossy |
| Color: | ND: CK16/Titanium Silver Full Glossy N2: Serial Black/Titanium Silver Full Glossy |
| Frame: | VIA NIRONE 7 alloy, TC18, hydroforming tubing, internal cable, seatpost diam. 31.6mm, flat mount disc brake, thru axle 12x142mm,40mm tire clearance, rack & fender eyelets, downtube underside bottle cage bosses, sizes47-50-53-55-57-59-61-63cm |
| Seatpost Clamp: | MX-112C Aluminium clamp, light weight, diam. 35mm |
| Headset: | Fsa NO.8B/ZS4D 1.1/8" semi-integrated lower part + integrated upper part, w/15mm Top cover tapered 46mm/50 OD head tube |
| Fork: | Carbon 1.1/8", flat mount, disc brake, thru axle 12x100mm |
| Rear Derailleur: | Shimano RD-R7000, 105, GS 11-speed, top normal shadow design, direct attachment |
| Stengel: | Velomann ST182A, Alloy 6061, raise +/ - 7°, height 38mm, Oversize, 1.1/8", Ext: 70mm-47cm, 90mm-50/53cm, 100mm-55cm, 110mm-57/59cm, 120mm-61/63cm |
| Derailleur: | Shimano FD-R7000-L, 105, for rear 11sp, down-swing, brazed-on type, 61-66°, for top gear:46-53T, CL :43.5mm, Clamp band adapter, SM-AD91, L-size(34.9mm) |
| Chain: | Kmc X11-1 EPT, 11sp, EPT finish |
| Code: | YRB4C |
| Brake: | Shimano BR-RX400 flat mount hydraulic disc brake, included in the shifter |
| Tires: | Vittoria Zaffiro V 32-622 rigid full black, 700x32c, Nylon 26 TPI |
| Brake lever: | included |
| Handlebars: | Velomann RA35A Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm, Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61/63cm |
| Saddle: | Velomann 2302HRN, hole, steel rail, cover PU soft touch, lenght/wide 280x145mm |
| Shifter: | Shimano 105 11sp Hydraulic disc brake - Disc-brake assembled set/J-kit direct , 105,ST-R7020(L), BR-R7070(F), black, for 160mm rotor, resin (w/o fin), 1000mm hose(SM-BH90 black) + ST-R7025(L) only for frames sizes 47- 50-53 - Disc-brake assembled set/J-kit direct, 105, ST-R7020(R), BR-R7070(R), black, w/o adapter, for 20mm mount thickness, resin (w/o fin), 1700mm hose (SM-BH90 black) + ST-R7025(R) only for frames sizes 47-50-53 Mount adapter for rear road disc brake mount, SM-MA-R160D/D, fixing bolt X2, snap retainer X1, washer X2black Small parts for SM-BH90 |
| Crankset: | Shimano FC-RS510 11sp, 2-pcs FC, w/BB parts (BSA), Crank Length: 170mm-44/54cm, 172.5mm-55/59cm, 175mm-60/63cm |
| Bottom Bracket: | included in the crankset |
| Cassette/freewheel: | Shimano CS-HG70011, 11sp, 11-13-15-17-19-21-23-25-27-30-34T |
| Disc Rotor: | Shimano SM-RT64 rotor for disc brake center lock , S 160mm |
| Front Hub: | Formula CL-712 road disc , alloy 32h, center lock, J-bend, thru axle 12x100mm, w/o QR w/o logo. 2SB bearing |
| Rear Hub: | Formula RXC-142S road disc , center lock, J-bend, thru axle 12xx142mm |
| Rim/wheelset: | Velomann GD24 disc 700c 622-21, profile 24mm, sleeve join, 32hole, tubeless ready |
| Grip/tape: | VLT-1001 w/Bianchi embossed logo, w/o cork |
| Stem: | Velomann ST182A, Alloy 6061, raise +/ - 7°, height 38mm, Oversize, 1.1/8", Ext: 70mm-47cm, 90mm-50/53cm, 100mm-55cm, 110mm-57/59cm, 120mm-61/63cm |
