Bianchi Zurigo - Tiagra 10sp Mech. Brake - Model 2018 C1 - Celeste Bianchi Matt 52

YNB45I52C1

Brakes:	Avid BB5 mechanical disc brake post mount
Brake levers:	included
Fork:	Bianchi Carbon/alloy 6061 disc brake, 11/8 - 1/5
Casette:	Shimano Tiagra CS-HG500-10, 11-12-14-16-18-20-22-25-28-32T
Chain:	Shimano CN-HG500
Seatpost clamp:	MX-112C Aluminium clamp, light weight, 35mm anti-crimp
Crankset:	Shimano Tiagra FC-4700 50x34T Crank Length: 170mm-49/52cm, 172.5mm-55~59cm, 175mm-61cm
Wheelset:	Reparto Corse ATD470 Alloy 6061 disc, 700c, 622x17
Handlebars:	Reparto Corse Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 126mm, drop 77 mm, Size: 420mm-49~52cm ,440mm-55~61cm
Grip tape:	Cork W/BIANCHI LOGO

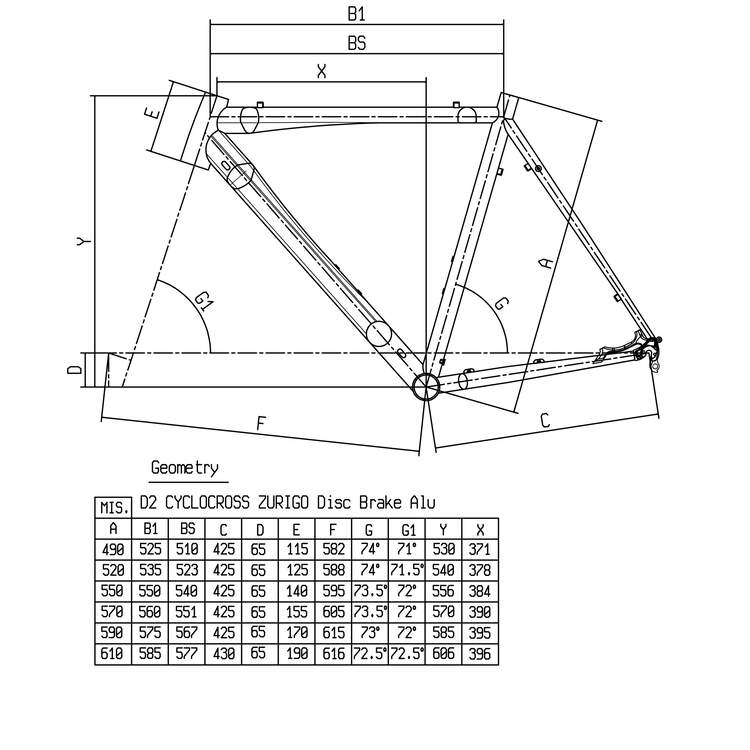

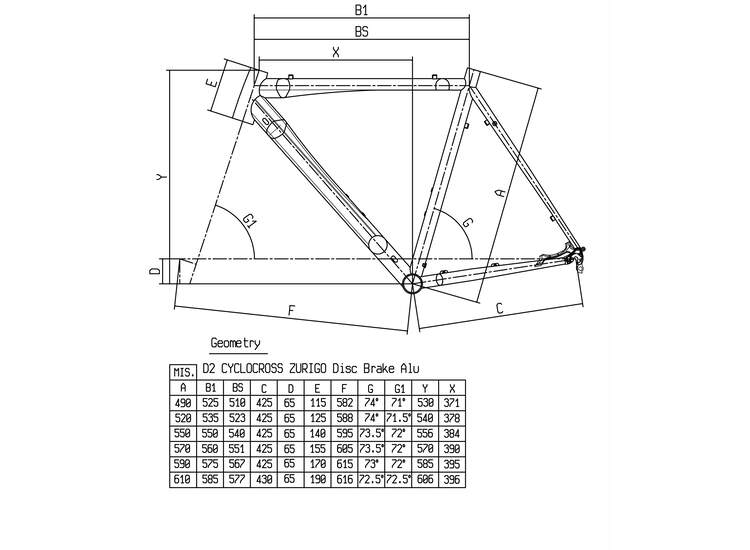

Frame:	ZURIGO cyclocross alu, Disc Brake, Headset 11/8 - 1/2, bbset PF30, seatpost 31,6mm, postmount disc, sizes 49-52-55-57-59-61cm
Tires:	Kenda Happy Medium 700X35c wire bead, 30 tpi
Saddle:	Selle San Marco Era Start, steel rail, cover syntex, lenght 277x135mm
Seatpost:	Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length 350mm
Shifters:	Shimano Tiagra ST-4700 2x10sp
Rear Derailleur:	Shimano Tiagra RD-4700 GS direct attachment, compatible with low gear 28-34T for double, 25-32T for triple
Headset:	Fsa Orbit C-40-ACB , NO.42/ACB, Sealed 1-1/8 ACB Top, 1.5 ACB Btm (for 46/56mm Head Tubes ), Standard 15mm top cover alloy
Bottom Bracket:	included in the crankset
Front derailleur:	Shimano Tiagra FD-4700, band type 34.9mm for double chainwheel
Stem:	Reparto Corse Alloy 6061, rise +/ - 7°, 1 1/8, Ext:90mm-49~52cm,100mm-55cm,110mm-57~59cm,120cm-61cm

YNB45I52C1
