Taille du cadre: |
47 50 53 55 57 59 61 |
|
Couleur: |
SW: Black/Graphite Glossy 1D: CK16 Glossy |
| Couleur: | 1D: CK16 Glossy
SW: Black/Graphite Glossy |

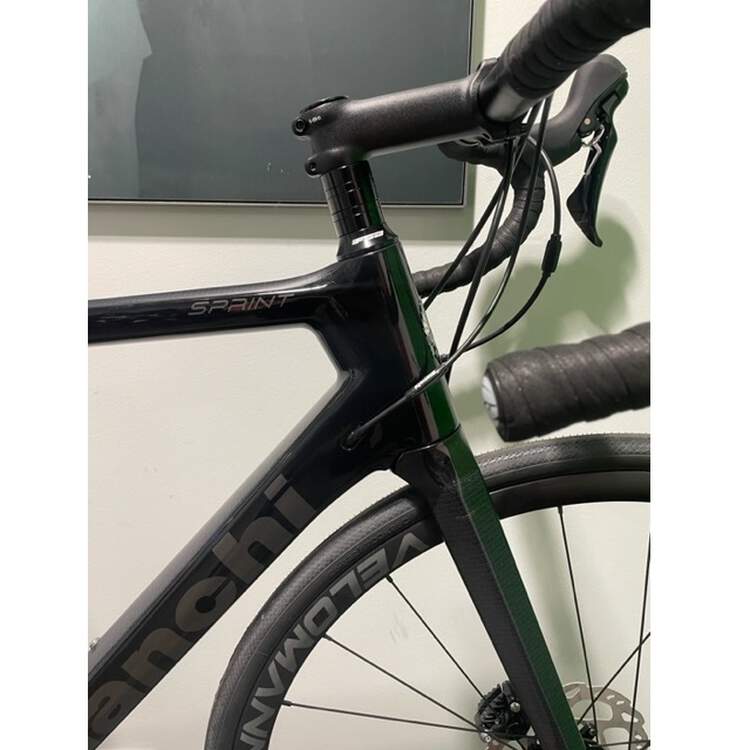

| Cadre: | Sprint carbon monocoque, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.1/8", integrated seat clamp, full carbon dropout, Disc brake flat mount, thru axle 12 x 142, sizes 47-50-53-55-57-59-61cm |
| Collier de tige de selle: | included in the frame |
| Casque: | Fsa Orbit C-33, NO.44E, 1.1/8" Top, 1.1/4" Btm with Chrome Steel bearing, 45°/45° ACB, alloy Standard 15mm top cover for 47mm/52mm OD head tube |
| Gabel: | Full Carbon Aero Road 1.4">1.1/8" integrated head , Disc brake flat mount, thru axle 12x100 |

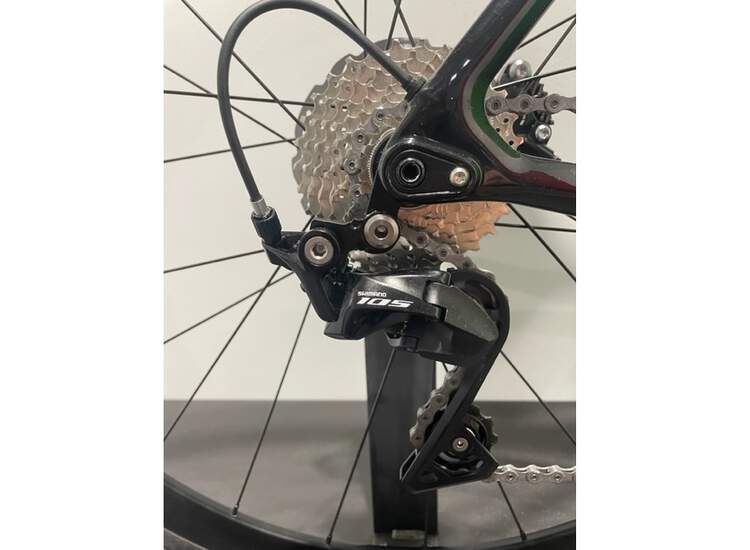

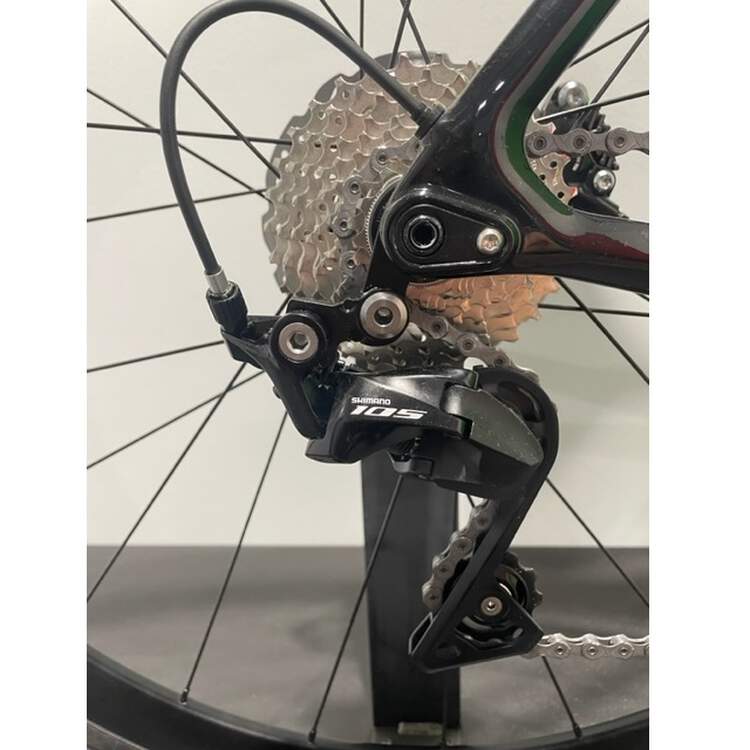

| Derailleur arriere: | Shimano RD-R7000, 105, GS 11-speed, top normal shadow design, direct attachment |
| Stengel: | Velomann ST182A, Alloy 6061, raise +/ - 7°, height 38mm, 1.1/8", Ext: 70mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm |
| Dérailleur: | Shimano FD-R7000-L, 105, 11sp, down-swing, brazed-on type, 61-66°, for top gear:46-53T, CL :43.5mm |
| Chaîne: | Kmc X11-1 EPT, 11sp, EPT finish |
| Bremse: | Shimano BR-R7070 flat mount hydraulic disc brake, included in the shifter |
| Pneus: | Vittoria Rubino IV G2.0 graphene, 700x28, 60TPI, Folding |
| Liens: | Velomann RA35A Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm, Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61cm |
| Frein à main: | included |
| Tige de selle: | Velomann SP02.1 Alloy shaft AL6061, alloy head, 15mm offset, 27,2mm, Length: 300mm-44cm, 350mm-47/61cm |
| Selle: | Velomann 1285 URN, steel rails, lenght/wide 278x144mm |
| Interrupteur: | 105 11sp Hydraulic disc brake
- Disc-brake assembled set/J-kit direct , 105,ST-R7020(L), BR-R7070(F), black, for 160mm rotor, resin (w/o fin), 1000mm hose(SM-BH90 black) + ST-R7025(L) only for frames sizes 47- 50-53
- Disc-brake assembled set/J-kit direct, 105, ST-R7020(R), BR-R7070(R), black, w/o adapter, for 20mm mount thickness, resin (w/o fin), 1700mm hose (SM-BH90 black) + ST R7025(R) only for frames sizes 47-50-53 +
Mount adapter for rear road disc brake mount, SM-MA-R160D/D, fixing bolt X2, snap retainer X1, washer X2black +
Small parts for SM-BH90, olive & connector insert each 2pcs |

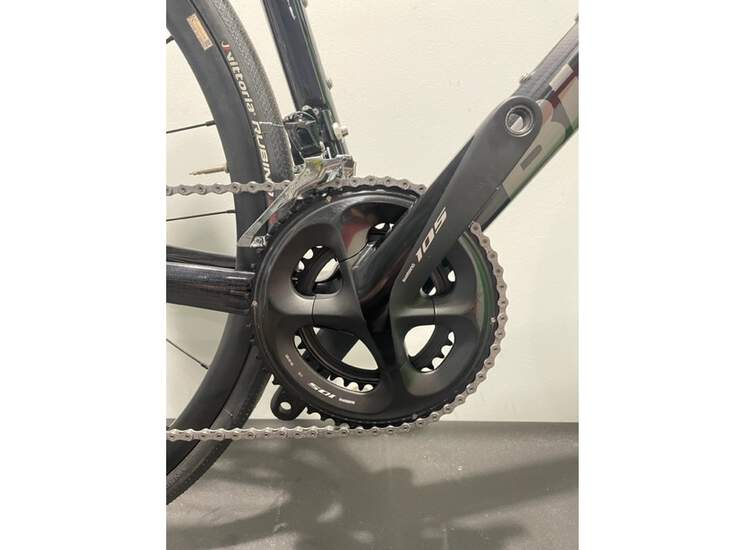

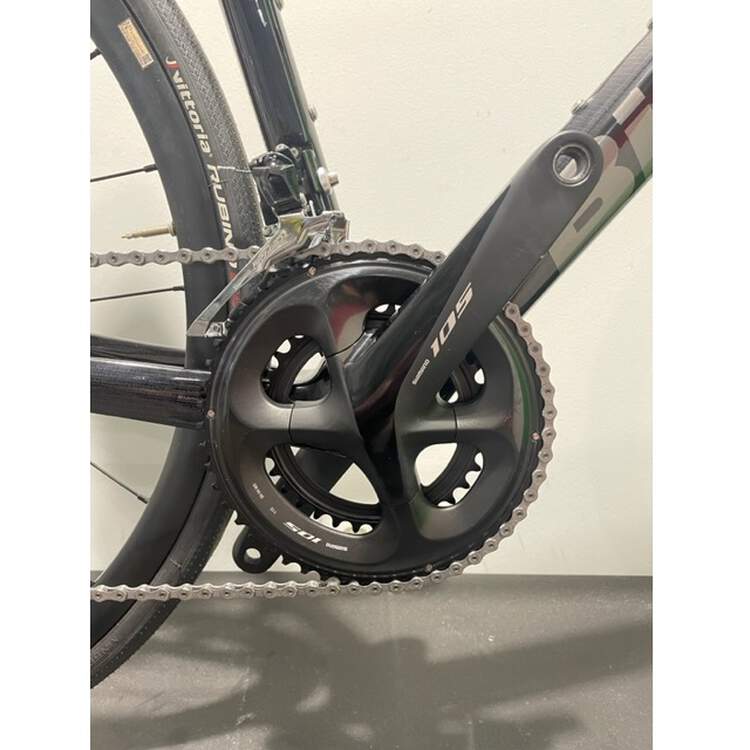

| Pédalier: | Shimano105 11sp Crank Length: 170mm-47/54cm, 172.5mm-55/59cm, 175mm-61cm |
| Support inférieur: | Shimano SM-BB71-41B, press fit for road, right & left adapter, bearing |
| Cassette/paroi libre: | Shimano CS-R7000, 105, 11sp, 11-12-13-14-16-18-20-22-25-28-32T |

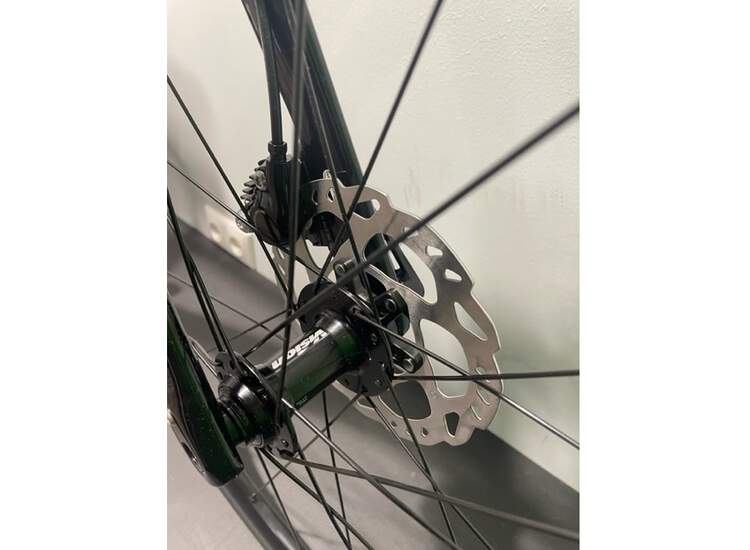

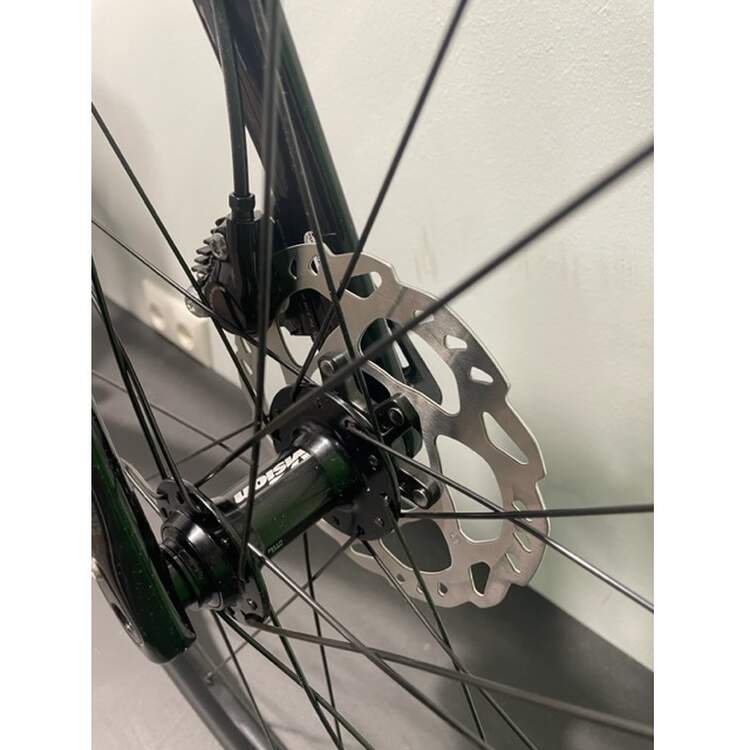

| Scheibenrotor: | Shimano SM-RT70, center lock , with Ice Technology, diam. 160mm |
| Ensemble jante/roue: | Velomann VR30 alloy, C19 disc brake, 30mm rim profile, clincher 622x19C, front HH12 - rear HH12/142 |
| Bande de poignée: | Ribbon cork + new plug carbon look with Bianchi logo |
| Tige: | Velomann ST182A, Alloy 6061, raise +/ - 7°, height 38mm, 1.1/8", Ext: 70mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm |
