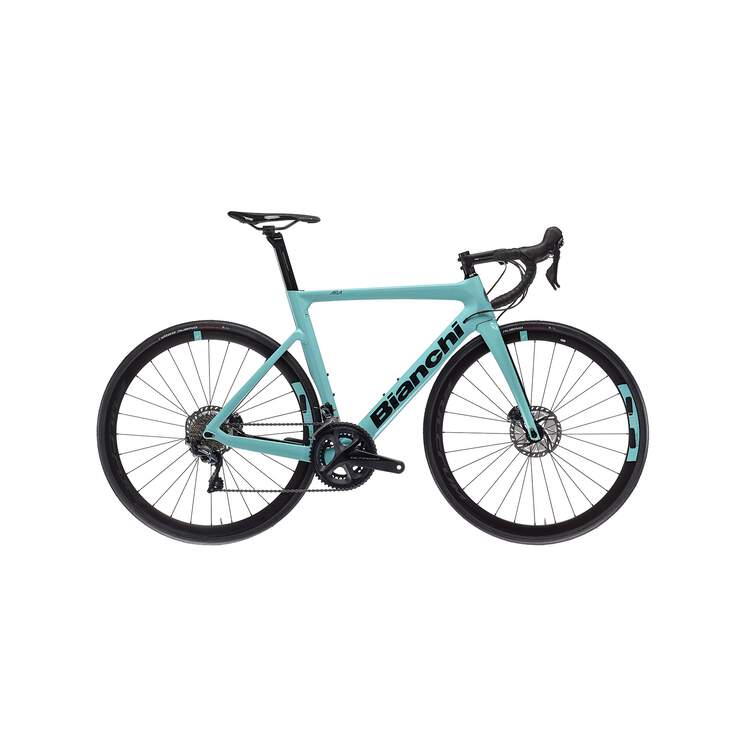

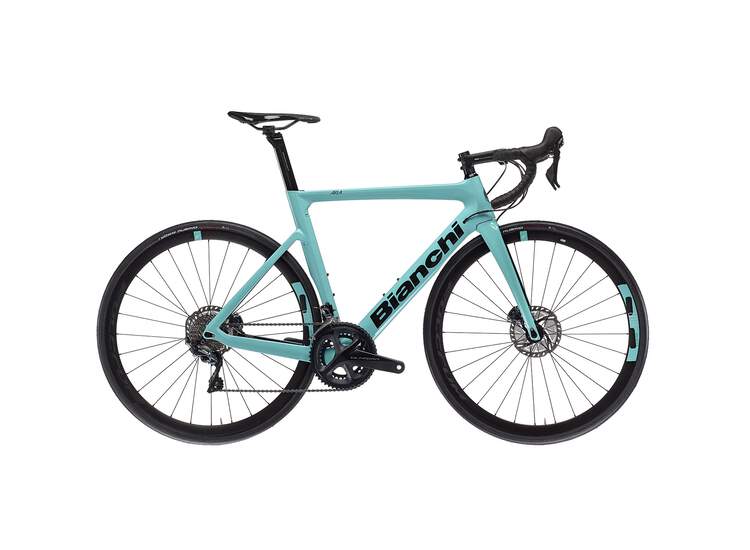

Bianchi Road Bike ARIA DISC Shimano 105 11sp - 2023 5K: CK16/ Black Full Glossy 50
Buy Bianchi road bike ARIA DISC Shimano 105 11sp - Price 2022
Code group: YQB8D/YRB8D
Product specifications
Datasheet PDF
| Size: | 44 47 50 53 55 57 59 61 |
| Color: | 2R: Black/ Brillant Graphite Full Glossy 5K: CK16/ Black Full Glossy |
| Color: | 5K: CK16/ Black Full Glossy 2R: Black/ Brillant Graphite Full Glossy |
| Frame: | Aria aero carbon, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.1/8", integrated seat clamp, full carbon dropout, aero shape DT-ST, Disc brake flat mount, thru axle 12 x 142, sizes 44-47-50-53-55-57-59-61cm |
| Seatpost Clamp: | included in the frame |
| Headset: | Fsa Orbit C-33, NO.44E, 1-1/8 Top, 1-1/4 Btm with Chrome Steel bearing,45°/45° ACB, alloy Standard 15mm top cover (H2166B) for 47mm/52mm OD head tube |
| Fork: | Full Carbon Aero Road 1.4">1.1/8" integrated head , Disc brake flat mount, thru axle 12x100 |
| Rear Derailleur: | Shimano RD-R7000, 105, SS 11-speed, top normal shadow design, direct attachment |
| Derailleur: | Shimano FD-R7000-L, 105, for rear 11sp, down-swing, brazed-on type,cs-angle: 61-66, for top gear:46-53T, CL :43.5mm |
| Stengel: | ST199A 3D Forged alloy 6061, raise +/ - 6°, height 38mm, Oversize, 1.1/8", Ext: 70mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm,120mm-59-61cm |
| Chain: | Kmc X11-1 EPT, 11sp, EPT finish |
| Code: | YRB8D |
| Brake: | Shimano BR-RS505 flat mount hydraulic disc brake, included in the shifter |
| Tires: | Vittoria Zaffiro Pro V 700 x 28c, 26TPI, G2.0, Folding |
| Handlebars: | RA83A Aero Compact, alloy 6061 diam. 31,8mm, reach 74mm, drop 116mm, Size: 400mm-47/53cm, 420mm-55/59cm, 440mm-61cm |
| Brake lever: | included |
| Seat Post: | Reparto Corse Full Carbon Aero special dimension, special Clamp type with alloy head adjustable and reversible +/- 35mm; lenght: 250mm-44cm, 300mm-47/50cm, 350mm 53/61cm, EL271 alloy 6061 clamp |
| Saddle: | Selle Royal Seta S1, 1285 URN, steel rails, lenght/wide 278x144mm |
| Shifter: | Shimano 105 11sp Hydraulic disc brake - Disc-brake assembled set/J-kit direct , 105,ST-R7020(L), BR-R7070(F), black, for 160mm rotor, resin (w/o fin), 1000mm hose(SM-BH90 black) + ST-R7025(L) only for frames sizes 47- 50-53 - Disc-brake assembled set/J-kit direct, 105, ST-R7020(R), BR-R7070(R), black, w/o adapter, for 20mm mount thickness, resin (w/o fin), 1700mm hose (SM-BH90 black) + ST-R7025(R) only for frames sizes 47-50-53 Mount adapter for rear road disc brake mount, SM-MA-R160D/D, fixing bolt X2, snap retainer X1, washer X2black Small parts for SM-BH90 |
| Crankset: | Shimano FC-R7000, 105, for rear 11-speed, hollowtech II, 50x34T w/o CG, w/o BB parts, Crank Length: 165mm-44cm, 170mm-47/54cm, 172.5mm-55/59cm, 175mm-61cm |
| Bottom Bracket: | Shimano SM-BB72-41B, press fit for road, right & left adapter, bearing |
| Cassette/freewheel: | Shimano CS-R7000, 105, 11sp, 11-12-13-14-15-17-19-21-24-27-30T |
| Disc Rotor: | Shimano SM-RT70 rotor for disc brake center lock , with Ice Technology, S 160mm w/lock ring |
| Rim/wheelset: | Fulcrum Racing 818 disc brake Aluminium C19 2WF-R Tubeless ready 622x19c, hub alloy J-type, sleeve joint rim, height 34mm, 24 spokes steel ED black round , bearing standard industrial, thru axle, center lock AFS, front HH12 - rear HH12/142, HG11 |
| Grip/tape: | Ribbon cork + new plug carbon look |
| Stem: | ST199A 3D Forged alloy 6061, raise +/ - 6°, height 38mm, Oversize, 1.1/8", Ext: 70mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm,120mm-59-61cm |
